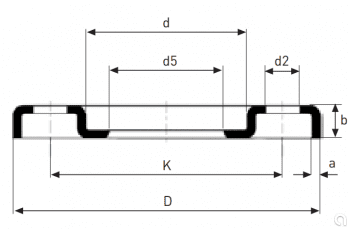

Brida prensada ISO DIN2642
| Referencia | DN | D | k | Tornillo | Calidad | d5 | a | b | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| BPI26421015 | 15 | 95 | 65 | 4u. M12 | 304 | 25 | 3 | 11,5 | 4 | |
| BPI26421020 | 20 | 105 | 75 | 4u. M12 | 304 | 31 | 3 | 14 | 50 | |
| BPI26421025 | 25 | 115 | 85 | 4u. M12 | 304 | 38 | 3 | 16 | 73 | |
| BPI26421032 | 32 | 140 | 100 | 4u. M16 | 304 | 47 | 3 | 16,5 | 67 | |
| BPI26421040 | 40 | 150 | 110 | 4u. M16 | 304 | 53 | 3 | 17,5 | 54 | |
| BPI26421050 | 50 | 165 | 125 | 4u. M16 | 304 | 66 | 3 | 19,5 | 68 | |
| BPI26421065 | 65 | 185 | 145 | 4u. M16 | 304 | 82 | 3 | 21 | 58 | |
| BPI26421080 | 80 | 200 | 160 | 8u. M16 | 304 | 95 | 3 | 22 | 66 | |
| BPI26421100 | 100 | 220 | 180 | 8u. M16 | 304 | 120 | 4 | 23 | 71 | |
| BPI26421125 | 125 | 250 | 210 | 8u. M16 | 304 | 145 | 4 | 25 | 20 | |
| BPI26421150 | 150 | 285 | 240 | 8u. M20 | 304 | 175 | 5 | 27 | 4 | |
| BPI26421200 | 200 | 340 | 295 | 8u. M20 | 304 | 227 | 6 | 31 | 29 | |
| BPI26421250 | 250 | 395 | 350 | 12u. M20 | 304 | 281 | 6 | 34 | 0 | |
| BPI26421300 | 300 | 445 | 400 | 12u. M20 | 304 | 331 | 6 | 28 | 2 | |
| BPI26421350 | 350 | 505 | 460 | 16u. M20 | 304 | 362 | 8 | 35 | 0 | |
| BPI26421400 | 400 | 565 | 515 | 16u. M24 | 304 | 413 | 8 | 35 | 0 | |
| BPI26422015 | 15 | 95 | 65 | 4u. M12 | 316 | 25 | 3 | 11,5 | 0 | |
| BPI26422020 | 20 | 105 | 75 | 4u. M12 | 316 | 31 | 3 | 14 | 0 | |
| BPI26422025 | 25 | 115 | 85 | 4u. M12 | 316 | 38 | 3 | 16 | 0 | |
| BPI26422032 | 32 | 140 | 100 | 4u. M16 | 316 | 47 | 3 | 16,5 | 0 | |
| BPI26422040 | 40 | 150 | 110 | 4u. M16 | 316 | 53 | 3 | 17,5 | 0 | |
| BPI26422050 | 50 | 165 | 125 | 4u. M16 | 316 | 66 | 3 | 19,5 | 0 | |
| BPI26422065 | 65 | 185 | 145 | 4u. M16 | 316 | 82 | 3 | 21 | 0 | |
| BPI26422080 | 80 | 200 | 160 | 8u. M16 | 316 | 95 | 3 | 22 | 0 | |
| BPI26422100 | 100 | 220 | 180 | 8u. M16 | 316 | 120 | 4 | 23 | 0 | |
| BPI26422125 | 125 | 250 | 210 | 8u. M16 | 316 | 145 | 4 | 25 | 0 | |
| BPI26422150 | 150 | 285 | 240 | 8u. M20 | 316 | 175 | 5 | 27 | 0 | |
| BPI26422200 | 200 | 340 | 295 | 8u. M20 | 316 | 227 | 6 | 31 | 3 | |
| BPI26422250 | 250 | 395 | 350 | 12u. M20 | 316 | 281 | 6 | 34 | 0 | |
| BPI26422300 | 300 | 445 | 400 | 12u. M20 | 316 | 331 | 6 | 28 | 0 | |
| BPI26422350 | 350 | 505 | 460 | 16u. M20 | 316 | 362 | 8 | 35 | 0 | |
| BPI26422400 | 400 | 565 | 515 | 16u. M24 | 316 | 413 | 8 | 35 | 0 |
